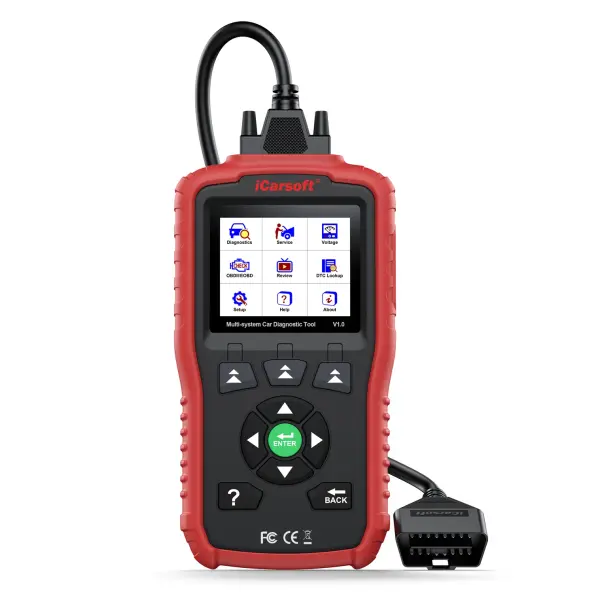

Das iCarsoft V1 für BMW und Mini
Professionelle Tiefendiagnose für BMW und Mini Fahrzeuge
ab ca. BJ 1996.
Das System unterstützt optimal bei der Diagnose und Wartung
am Fahrzeug. Durch regelmäßige Updates bieten wir hiermit
eine zukunftssichere Hardware an.
Dieses Diagnosesystem zeichnet sich durch viel Performance
in der Diagnosetiefe, den hochwertigen Aufbau mit hoher
Benutzerfreundlichkeit und der kompakten Bauart aus.
Die Technologie von iCarsoft erlaubt es dem Benutzer
die integrierten Steuergerätedaten direkt zum
Handgerät zu übertragen.
Sobald ein Fehler oder eine Kommunikationsstörung entdeckt
wird erhält der Benutzer eine Benachrichtigung auf dem
System. Sie werden über mögliche Störungen informiert und
zusätzlich mit Detailinformationen versorgt.
Mit diesem System steht Ihnen jederzeit eine aussagekräftige
Diagnoseinformation zur Verfügung. Es lassen sich eventuelle
Fehler schnell und komfortabel lokalisieren.
Funktionen
- Fehler lesen und löschen (inkl. ABS und Airbag)
- Öl-Service Reset
- Live Daten Funktion (Motordrehzahl, Luftmassenmesser,
Kühlmitteltemperatur, Lambdasonde usw.)
- Einfach abzulesendes Farbdisplay
- Einfache Bedienung über sieben Softtasten
- Keine Batterien oder Laptop notwendig
- Schnell, einfach und KOSTENLOS Updates über das Internet
- Liste alle Fehlercodes (Generelle und Herstellerspezifisch)
- uvm...
Für ältere Fahrzeugmodelle die noch nicht über den OBD2
Standard verfügen benötigen sie noch den
Original iCarsoft 20 Pin Adapter für BMW.
Unterstützte Fahrzeughersteller
- BMW
- Mini
Unterstützt Modelle
Für BMW
1'er Serie: E81 / E82 / E87 / E88 / F20 / F21
2'er Serie: F22 / F23 / F45 / F46
3'er Serie: E30 / E36 / E46 / E90 / E91 / E92 / E93 / F30 /
F31 / F34 / F35 / F80
4'er Serie: F32 / F33 / F36 / F82 / F83
5'er Serie: E28 / E34 / E39 / E60 / E61 / F07 / F10 / F11 / F18
6'er Serie: E24 / E63 / E64 / F06 / F12 / F13
7'er Serie: E23 / E32 / E38 / E65 / E66 / E68 / F01 / F02 /
F03 / F04
8'er Serie: E31
I-Serie: I01 / I12
X-Serie: X1 E48 / X1 E84 / X3 E83 / X3 F25 / X4 F26 / X5 E53 /
X5 E70 / X5 F15 / X5 F85 / X6 E71 / X6 E72 / X6 F16 /
X6 F86
Z-Serie: Z1 E30 / Z3 E36 / Z4 E85 / Z4 E86 / Z4 E89 / Z8 E52
Für Mini
R50 / R52 / R53 / R55 / R56 / R57 / R58 / R59 / R60 / R61
F55 / F56
Unterstützte Steuergeräte / Sensoren
AB [Airbag]
ABS [Anti-lock braking system]
ABS/ACS/DSC [Dynamic Stability Control]
ABS/ASC [tester]
ABS/ASC/DSC [Dynamic Stability Control]
ABS/ASC/DSC [Dynamic Stability Control]
ACC [Active Cruise Control]
ACC2 [Active Cruise Control 2]
ACSM [Crash Safety Module]
ADS [Throttle-valve control]
AHL [Adaptive directional headlights]
AHM [Trailer module]
AIC [Automatic Interval Control]
AL [active steering]
ALBBF [active backrest width,front passenger]
ALBFA [active backrest width,driver]
AMP [Amplifier]
AMPH [Hi-Fi amplifier]
AMPT [Top Hi-Fi amplifier]
ANT [Aerial/antenna tuner]
APM [Hybrid DC/DC converter]
ARS [Dynamic Drive]
ASD [Active Sound Design]
ASK [Audio System Controller]
BCM [Battery check module]
BCO/MID [On-board computer/MID]
BFH [Seat module, passenger's side rear]
BFS [Seat Module, Passenger]
BIT [Basis Interface Telephone]
BM [On-board monitor]
BMBT [On-board monitor,control panel]
BZM [Control centre,centre console]
CA [Comfort access system]
CAN [communication analysis]
CAS [Car Access System]
CBX-ECALL [Combox emergency call]
CBX-MEDIA [Combox Multimedia]
CCC-A [Applications]
CCC-ANT [Aerial tuner]
CCC-ASK [Audio system controller]
CCC-BO [User interface]
CCC-GW [Gateway]
CCM [Check Control Module]
CD [Control Display]
CDC [CD Changer]
CD-GW [Control Display]
CEM [Clean Energy Module]
CHAMP-BO [User interface]
CHAMP-GW [Gateway]
CIC [Car Information Computer]
CIC-GW [Gateway]
CID [Central information display]
CIM [Chassis Integration Module]
CNAV [Navigation system,China]
CON [Controller]
CVM [Convertible top-module]
CVM2 [Convertible top-module]
DAB [Digital tuner]
DDE [Diesel Electronics]
DDS [Deflation Detection System]
DKG [Twin-clutch gearbox]
DME [Digital Motor Electronics]
DME/DDE [Engine Electronics]
DME2 [Digital Motor Electronics 2]
DSC [Dynamic Stability Control]
DSM [Hybrid parking lock]
DSP [Digital Sound Processor]
DVDC [DVD Changer]
DWA [anti-theft alarm system]
ECALL [Emergency Call]
EDC [Damper Control]
EDCSHL [Damper satellite, rear left]
EDCSHR [Damper satellite, rear right]
EDCSVL [Damper satellite, front left]
EDCSVR [Damper satellite, front right]
EGS [transmission management]
EGS/AGS [Transmission Control]
EHC [Electronic Ride-Height Control]
EHC2 [Electronic ride-level control]
EHPS [Electrically assisted steering]
EKK [Electric A/C compressor]
EKP [Fuel pump]
EKPS [fuel-pump control]
ELV [Electronic steering-column locking]
EMALI [Electric-motor reel, left]
EMARE [Electric-motor reel, right]
EME [Electric machine electronics]
EME2 [Electrical machine electronics]
EMF [Parking brake]
EML [Engine-Power Control]
EMPI [Hybrid oil-pump activation]
EPS [Electronic Power Steering]
EWS [Electronic car Immobilisation system]
FAH [Seat module, driver's side rear]
FAS [Seat Module, Driver]
FBI [Flexible Bus Interface]
FBZM [Rear compartment,control centre,centre console]
FBZV [Radio-control system]
FCON [Rear compartment controller]
FD [Rear-compartment display]
FD2 [Rear-compartment display 2]
FEM [Front electronic module]
FGB [rear compartment blower]
FHK [rear-compartment heating/air conditioning]
FID [Rear-compartment information display]
FKA [Rear heater/air conditioning]
FLA [High Beam Assist]
FMBT [Rear-compartment monitor,control panel]
FMGT [Rear-compartment monitor,graphics section]
FRM [Footwell Module]
FRM2 [footwell module 2]
FZD [Roof control panel]
GHAS [Regulated differential lock]
GM [base module]
GM5 [General module 5]
GR [Cruise control]
GR2 [Cruise control]
GSR [Cruise control]
GWS [Gear selector switch]
GZAL [Targeted illumination,left]
GZAR [Targeted illumination,right]
HCP [Hybrid master control unit]
HIM [Hybrid Interface Module]
HKA [Rear-cabin automatic A/C]
HKL [Automatic luggage compartment lid actuation]
HKL [Rear-lid lift]
HKM [Boot-lid module]
HPFI [control unit]
HSR [Rear-axle slip-angle control]
HUD [Head-Up Display]
IBOC [Digital tuner US]
ICM [Integrated Chassis Management]
IHK [Heater-A/C system]
IHKA [AC/heater]
IHKR [Heater and A/C control]
IHKS [Integrated heating/air- conditioning control]
IHR [Integrated heater control]
IKE [Instrument-cluster electronics]
INSTR [Instrument cluster]
IR [Radio/infrared locking system]
IRIS [Integrated Radio- Information System]
JBE [Junction-box electronics]
JBE2 [Junction Box electronics]
JBIT [Japan Basis Interface Telephone]
JNAV [Navigation system,Japan]
KAFAS [Camera-based driver- assistance systems]
KBM [Body basic module]
KGM [Body Gateway Module]
KHI [Headset interface]
KHM [Headphones module]
KNAV [Navigation system,Korea]
KOM [Instrument cluster]
LCM [Light Check Module]
LDM [Longitudinal Dynamics Management]
LEW [Steering-angle sensor]
LHML [LED main light module,left]
LHMR [LED main light module,right]
LM [Lights Module]
LM2 [Light module 2]
LRA [Automatic headlight vertical aim control]
LRR [Long-range sensor]
LSZ [Light switch centre II]
LWS [Steering angle sensor]
M-ASK-BO [User interface]
M-ASK-GW [Gateway]
M-ASK-NAV [Navigation system]
MCPA [Hybrid electric-motor control 1]
MCPB [Hybrid electric-motor control 2]
MFL [Multi-function steering wheel]
MID [Multi Information Display]
MIR [Multi-Information Radio]
MJOY [MINI joystick]
MMC [DVD changer]
MOST [system analysis]
MPM [Micro-power module]
MRS/AB [Airbag/ACSM]
NAJ [Navigation computer,Japan]
NAR [Navigation radio]
NAV [Navigation computer MKII]
NVE [Night Vision Electronics]
NVK [Night Vision camera]
PCU [Power Control Unit]
PDC [Park Distance Control]
PDC2 [Park Distance Control 2]
PM [Power Module]
PMA [Parking assistant]
QMVH [Lateral-moment distribution,rear axle]
RAD [Radio]
RAD2-BO [User interface]
RAD2-GW [Gateway]
RCC [Radio-clock module]
RDC [Tyre pressure control]
RDW [tyre-blowout warning]
REM [Rear electronic module]
RFK [Reversing camera]
RLS [Rain/Light Sensor]
RLSS [Rain/Light Solar Sensor]
RSE [Rear Seat Entertainment]
SASL [Satellite,A-pillar,left]
SASR [Satellite,A-pillar,right]
SBA [Hybrid brake-actuation changeover]
SBBF [Seat occupancy,passenger]
SBSL [Satellite,B-pillar,left]
SBSR [Satellite,B-pillar,right]
SCR [Selective Catalytic Reduction]
SDARS [Satellite tuner]
SEC [Supplementary control unit]
SEC2 [Supplementary control unit 2]
SES [Language-input system]
SFZ [Satellite vehicle centre]
SG-FD [Control unit,rear- compartment display]
SG-FD-GW [Control unit,rear- compartment display]
SGM-SIM [Safety and Gateway Module]
SGM-ZGM [Safety and Gateway Module]
SHD [Panorama glass sunroof]
SHD [Sliding/tilting sunroof]
SHZH [Independent/auxiliary heater]
SIM [Safety and Information Module]
SINE [Siren and tilt sensor]
SM/SLM [Seat/steering-column memory]
SMB [passenger seat memory]
SMBF [Seat module,passenger]
SMBFH [Seat module,passenger's side,rear]
SME [Accumulator-management electronics]
SMF [Seat memory,driver]
SMFA [Seat module,driver]
SMFAH [Seat module,driver's side,rear]
SPM/SM [Seat/mirror memory]
SPMBT [Mirror memory,passenger]
SPMFT [Mirror memory,driver]
SRS [Air bag]
SSBF [Satellite,seat,passenger]
SSFA [Satellite,seat,driver]
SSH [Satellite,seat,rear]
STH [park heating]
STML [Headlight driver module,left]
STMR [Headlight driver module,right]
STVL [Satellite,door,front left]
STVR [Satellite, door, front right]
SVS [Language processing system]
SVT [Servotronic]
SWW [Lane change warning]
SZL [Switch centre, steering column]
SZM [Switching centre,centre console]
TBX [Touchbox]
TCM [Hybrid-transmission control]
TCU [Telematic control unit]
TEL [Telephone USA]
TFE [Hybrid pressure-tank electronics]
TLC [Lane Departure Warning]
TMBF [Door module,front passenger]
TMBFH [Door module,passenger's side, rear]
TMBFT [Door module,passenger door]
TMFA [Door module,driver]
TMFAH [Door module,driver's side, rear]
TMFAT [Door module,driver's door]
TOENS [Thermal oil-level sensor]
TRS [Electronic battery isolator switch]
TRSVC [All round view camera]
ULF [Universal charging and hands-free facility]
ULF-SBX [Interface box]
ULF-SBX-H [Interface box High]
URS [Rollover sensor]
VDM [Vertical Dynamics Management]
VDM2 [Vertical dynamics management]
VID [Video module]
VM [Video Module]
VSW [video switch]
VTC [Valvetronic]
VTC2 [Valvetronic 2]
VTG [Transfer case]
WIM [Wiper module]
ZBM [Two-battery management]
ZGM [Central Gateway Module]
ZKE [Central body electronic]
ZUH [Auxiliary heater]
Unterstützte Protokolle
- CANBUS
- ISO9141
- KWP2000
- J1850 JPW
- J1850 PWM
- uvm...
Unterstützte Sprachen
- Deutsch
- Englisch
Technische Daten
- Kabellänge ca. 600 mm
- Abmessung ca. 187 x 101 x 35 mm
- Display: LCD Farbe mit Hintergrundbeleuchtung
- Spannungsbereich: 12V DC, über die OBD Schnittstelle
- Steckertyp: Genormter 16 pol. OBD Stecker
- Gehäuse: Kunststoff
Lieferumfang
- Diagnosegerät iCarsoft V1
- Bedienungsanleitung (auch in Deutsch)
- 16 pol OBD Kabeladapter
- Transporttasche
- USB Kabel
